Vibra Platform DK – Complete Surface Finishing Solution

## Vibra Platform DK – Complete Surface Finishing Solution

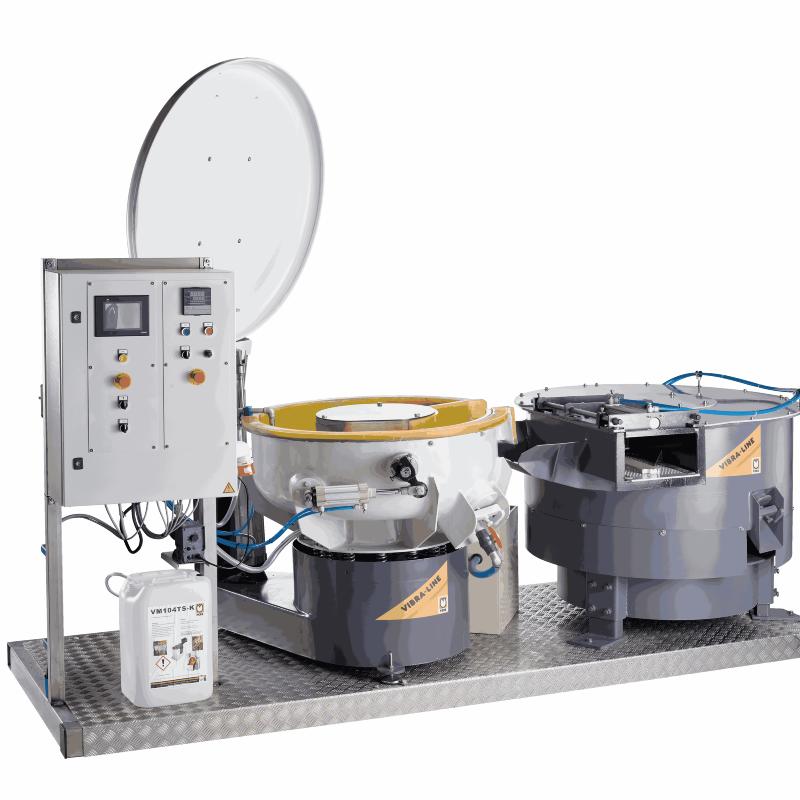

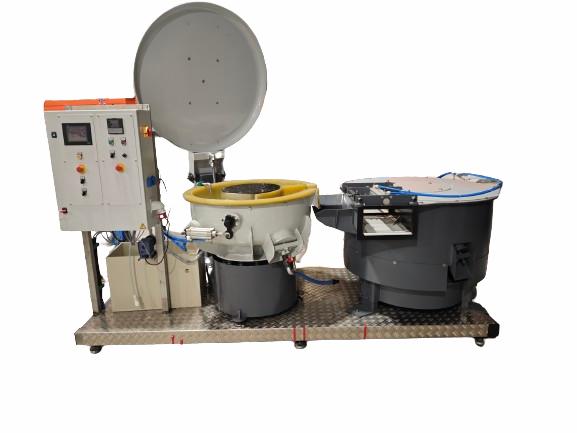

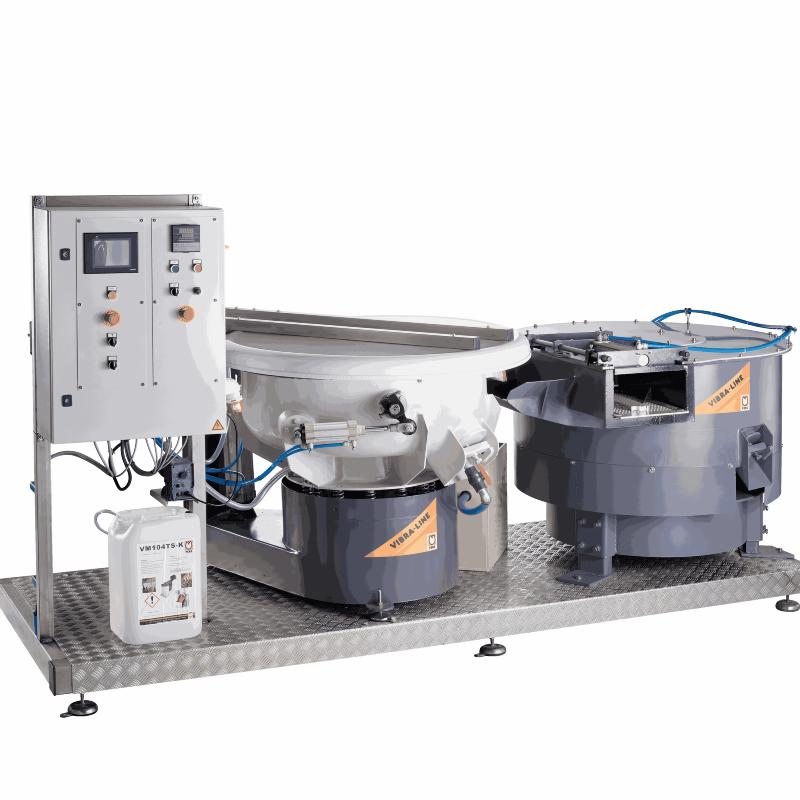

The Vibra Platform DK is a compact, mobile, and fully integrated surface treatment system combining a circular vibrator and vibratory dryer in one efficient plug-and-play solution. Designed for professional performance and simple operation, it is ideal for both experienced operators and first-time users.

### Efficient and User-Friendly Surface Treatment

The system is pre-assembled and ready for operation with minimal installation requirements. Simply connect power, compressed air, and process water to begin production. Its space-saving design and mobile platform make it suitable for flexible use in different production environments.

### Key Benefits

* Complete solution with circular vibrator and vibratory dryer
* Plug-and-play installation for fast commissioning
* Compact and mobile platform for flexible placement
* Easy operation with touchscreen control
* Durable PU-coated processing chamber with high wear resistance
* Automatic unloading and noise-reducing lid
* Energy-optimised drying and deburring process
* Designed for high-quality and consistent finishing results

### Vibra-Line DK – Semi-Automatic Circular Vibrator

The Vibra-Line DK features a semi-automatic circular vibrator with stepless speed regulation and a modern 5.5” touchscreen interface. The machine is equipped with a robust PU-coated inner container and automatic air-controlled emptying system, ensuring reliable and efficient operation.

### Vibratory Dryer 200

The integrated Vibratory Dryer 200 ensures efficient drying and polishing of metal parts. With intelligent temperature control and automatic unloading, the system delivers shiny, flawless surfaces while reducing energy consumption.

### Technical Highlights

* Capacity: 100–480 litres
* Vibratory dryer chamber: 220 litres
* Power supply: 16/32 amp CEE plug
* Required air pressure: 4 bar dry compressed air
* Dimensions: H 1,800 × L 3,200 × W 1,500 mm
* Weight: 600 kg

Perfect for companies seeking an efficient, durable, and easy-to-operate solution for deburring, drying, and polishing metal components.
