Colour- Line 3 IN ONE DEEP COLOUR SYSTEM

Colour-Line – 3-in-1 Deep Colour System for Plastic Components

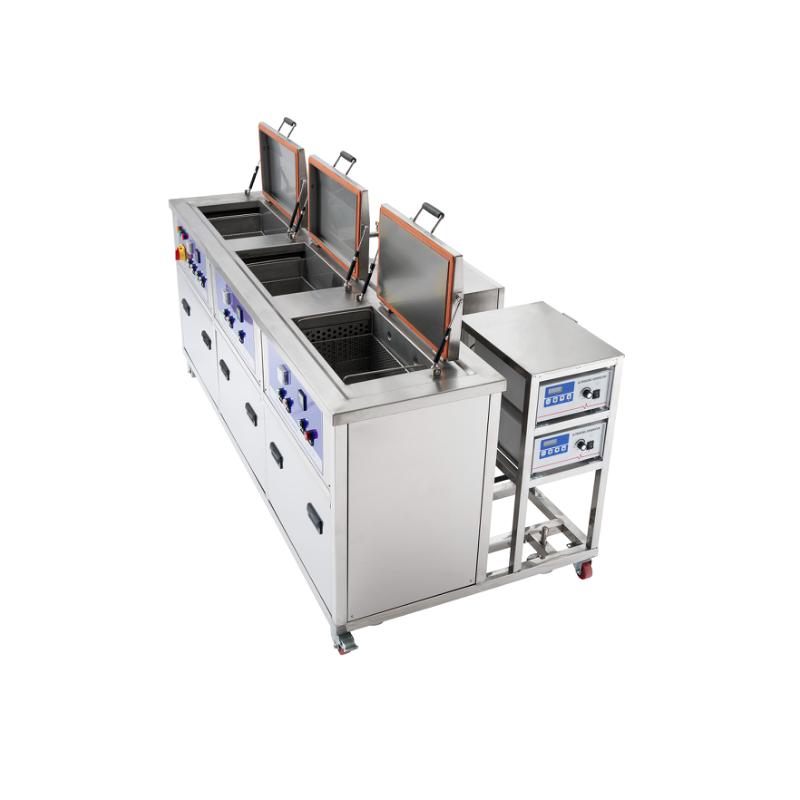

The **Colour-Line 3-in-1 Deep Colour System** is an advanced solution for achieving consistent, high-quality coloration of plastic components. Designed for industrial production environments, the system combines **cleaning, dyeing, rinsing, and drying processes** into one efficient workflow, ensuring outstanding colour uniformity and repeatable results.

## Superior Colour Quality Through Process Control

To ensure optimal dye penetration and colour consistency, plastic parts are exposed to **ultrasonic cleaning and powerful liquid circulation** during the dyeing process. This removes residual particles from previous manufacturing processes and eliminates trapped air bubbles, allowing the dye to penetrate the material more effectively.

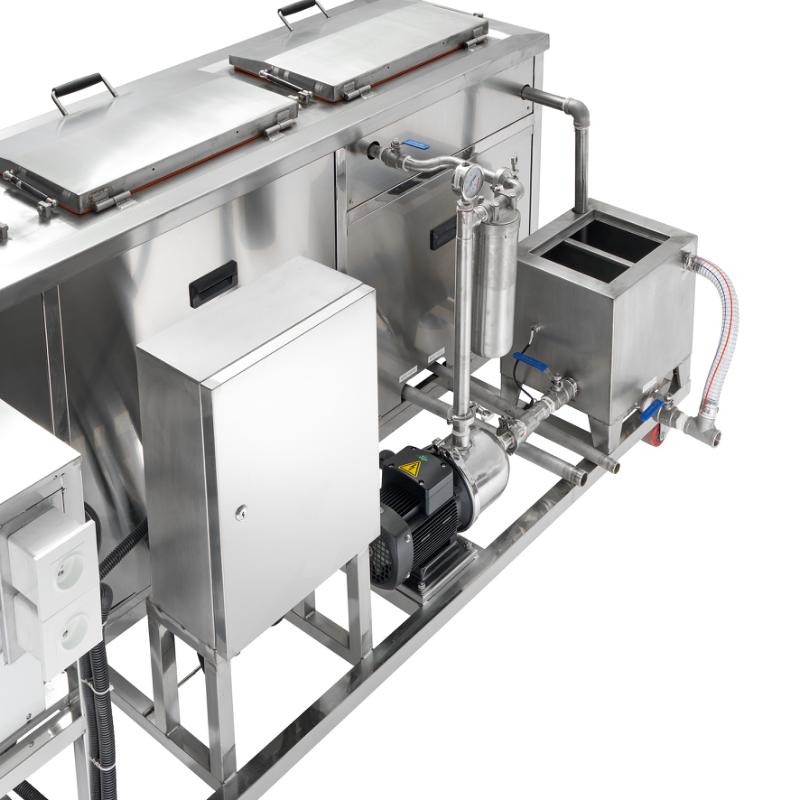

An integrated recirculation system with **continuous overflow and fine filtration** removes contaminants from the bath, helping maintain process stability and product quality throughout production.

## Flexible Capacity for Different Production Needs

The Colour-Line system is available in **four standard sizes ranging from 38 to 135 litres**, accommodating basket dimensions from **420 × 270 × 210 mm up to 550 × 450 × 400 mm**. For larger components, customized standalone units can be supplied with capacities up to **950 × 600 × 600 mm**.

## Complete Process Solution

The process is tailored to the specific plastic material, with operating temperatures typically ranging between **50°C and 80°C**. After colouring, components are automatically transferred to a rinse stage where excess dye is removed, followed by a drying section that delivers clean, moisture-free parts ready for the next production step.

### Key Benefits

* Uniform and repeatable colour results
* Integrated ultrasonic cleaning and dyeing process
* Advanced filtration and circulation system
* Reduced contamination and improved product quality
* Available in multiple standard and custom sizes
* Suitable for a wide range of plastic materials
* Complete cleaning, dyeing, rinsing, and drying workflow

**Pers Group** delivers robust, high-performance colouring systems designed to meet the demanding requirements of modern plastics manufacturing.
