TerraSigma-X PIC engine

arrow_backTil oversigten

Phanofi

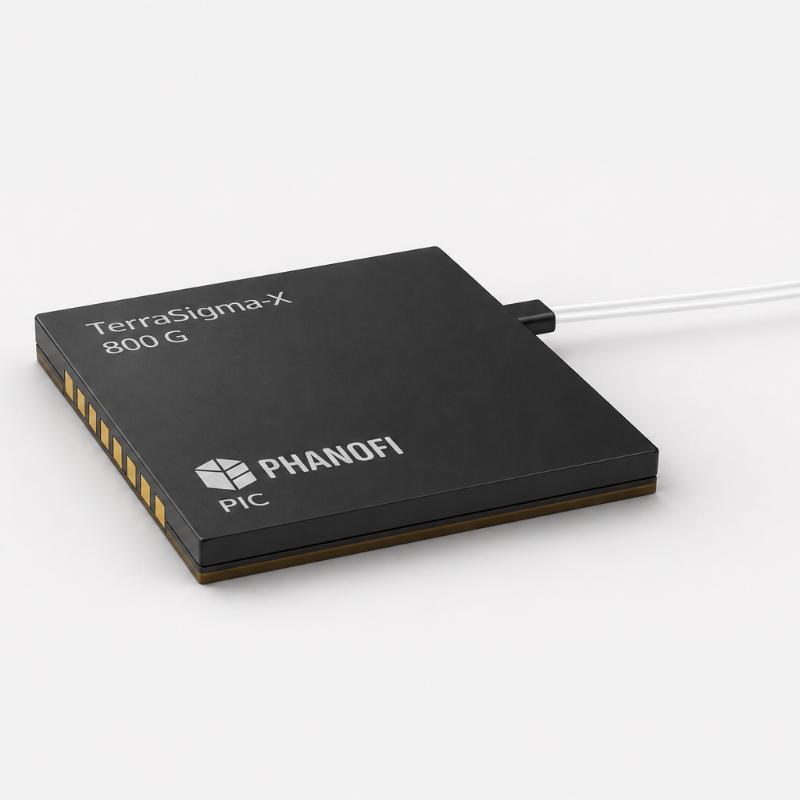

The heart of Phanofi's technology is the photonic integrated circuit (PIC) engine and its high-speed electronics co-packaged into a single device, ready to be built into a pluggable. The PIC engine comes in two version the Axiom and TerraSigma-X. Both engines carries Phanofi's CoDi architecture, which detects phase and polarization passively in the optical domain rather than in a coherent DSP, so the engine delivers four times the throughput per wavelength of an intensity-only design and 25 to 30% less power per link, while still being driven by a standard PAM4 DSP on the host board. Axiom runs at 400G in 8 W, TerraSigma-X at 800G/1.6T in 13/22 W. Both are laid out to current electrical and packaging standards, so they drop into existing module designs without changes to the host. Both engines are designed for OEMs and system builders who package their own modules.

Flere produkter fra Phanofi

PIC and EIC design
  • På messen
Phanofi

Phanofi

PIC and EIC design

Picosecond pulse source
Phanofi

Phanofi

Picosecond pulse source

Produktet er tilføjet af:

Phanofi

Phanofi er en dansk deep tech-startup virksomhed, som udvikler den næste generation af højhastigheds optiske transceivere til AI-datacentre samt pulserede lasere til brug i den voksende kvante-teknologi industri. Phanofis teknologi kombinerer højhastigheds fotoniske integrerede kredsløb (PICs) med RF-elektronik og bygger på dybdegående ekspertise inden for fysik, elektronik og optik. Desuden samarbejder vi med partnere om at specialdesigne højhastigheds-PICs og -analoge EICs til anvendelser hvor standardkomponenter ikke er tilstrækkelige.
